MC4 Multi chamber bale press

Small multi chamber press

The MC4 multi chamber press has been designed to serve customers with smaller quantities of waste.

With two chambers you have the possibility of sorting your waste before compressing, eg. using one chamber for cardboard and the other for plastic.

Both chambers are operated by a common press section, which is easily moved from one side to the other.

  • Effective operation
    With a fast cycle time
  • Rational sorting
    Saving time and space
  • Easy move of press section
    Due to horizontal handle

Dimensions | Technical Spec | Download PDF

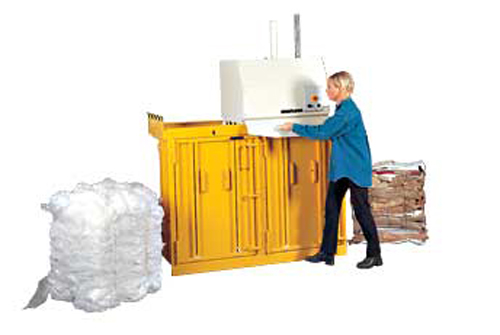

MC16 Waste Baler

Technical Specifications Model: MC4

Press force (t) 4 Power supply 1x230V 50 Hz 10A
Motor (kW) 1.1 Noise level (dB) 65-68
Cycle time (sec) 20 Dimensions WxDxH (mm) 1720 x 900 x 2180
Weight (kg) 560 Filling opening WxH (mm) 700 x 500
Filling height (mm) 1240 Chamber height (mm) -
Stroke (mm) 750 Bale size WxDxH (mm) 700 x 500 x 700
Bale weight cardboard (kg) 40-60 Bale weight plastic (kg) 50-70

Go back to the top

Dimensions

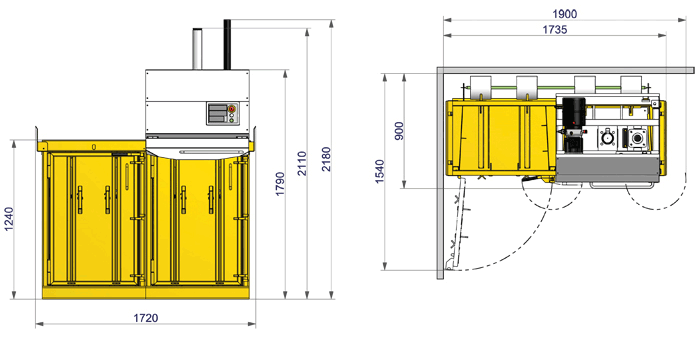

MC4 baler Dimensions
